Inconel Tube Manufacturer & Supplier

Inconel tube is a nickel-chromium superalloy tubular product designed for extreme temperatures and corrosive environments. These tubes come in grades 600 and 625, each with a distinct balance of nickel, chromium, molybdenum, and niobium. Inconel 600 contains 72% minimum nickel with 14 to 17% chromium, while Inconel 625 adds 8 to 10% molybdenum and 3.15 to 4.15% niobium. Tensile generally stays around 550 MPa (80 ksi) in annealed Alloy 600.

Sachiya Steel International is a trusted Inconel tubes manufacturer, supplier, stockist, and exporter based in Mumbai, India, with over 20 years of experience. We carry a ready inventory of 1,500 to 2,000 metric tons in seamless and welded forms. Our tubing complies with ASTM B163, ASTM B167 / ASME SB-167, and ASTM B444 / ASME SB-444. Sizes span 1/4 inch (6.35 mm) to 12 inch OD, with wall thicknesses from 0.035 inch (0.89 mm) to 0.500 inch (12.70 mm). All products ship with mill test reports under ISO 9001, ISO 14001, and ISO 45001 certifications.

Industries served include aerospace, chemical processing, oil and gas, nuclear, and heat exchanger manufacturing.
This page covers:

Specifications
Pricing
Grades
Industrial Applications
Inconel vs Stainless Steel Tube
Shipping & Packaging
Frequently Asked Questions

Inconel Tube Specifications

The Inconel Tube specification is mentioned below in the table, including length, surface finish and wall thickness.

Parameter	Specification
Material Grades	Inconel 600, Inconel 625
Standards	ASTM B163, ASTM B444
Type	Seamless / Welded
Outer Diameter (OD)	6.35 mm to 304.8 mm (1/4" to 12")
Wall Thickness (WT)	0.89 mm to 12.7 mm (0.035" to 0.500")
Length	Up to 26 metres (custom lengths available)
Form	Round, Square, Rectangular, Hydraulic Tubes
End Finish	Plain End (PE), Bevelled End (BE), Threaded
Surface Finish	Annealed & Pickled (AP), Bright Annealed (BA), Polished
Condition	Annealed / Cold Drawn / Hot Finished

Inconel Tube Sizes

Inconel tubes are stocked in a wide range of outer diameters and wall thicknesses.

Tube Type	Outer Diameter (OD)	Wall Thickness	Length
Seamless Inconel Tubes	1/4" to 12" (6.35 to 304.8 mm)	0.035" to 0.500" (0.89 to 12.70 mm)	Up to 26 m
Welded Inconel Tubes	1/2" to 12" (12.7 to 304.8 mm)	0.8 mm to 12.7 mm	As per ASTM B704 / B751

Inconel Tube Grades

Inconel tubes come in 2 primary grades targeting specific operating conditions.

Inconel 600 Tube (ASTM B163 / ASTM B167)

Inconel 600 tube contains 72% minimum nickel with 14 to 17% chromium. It resists chloride stress corrosion cracking and oxidation up to 1100°C (2012°F), serving nuclear steam generators and furnace equipment.

Inconel 625 Tube (ASTM B444)

Inconel 625 tube is solid-solution-strengthened with 8 to 10% molybdenum and 3.15 to 4.15% niobium. Annealed tubing delivers 827 MPa (120 ksi) minimum tensile strength for offshore oil and gas and chemical processing.

Inconel Tube Price

The pricing of Inconel 600 tube ranges from Rs 800 to 5,000 per kg in India and US $10 to $60/kg internationally. For 625, it goes from Rs 2,000 to 12,000 per kg in India and US $25 to $150/kg overseas. The final price depends on grade, size, form, and quantity. Contact us with your requirements for current pricing.

Types of Inconel Tubes

Inconel tubes come in 2 configurations.

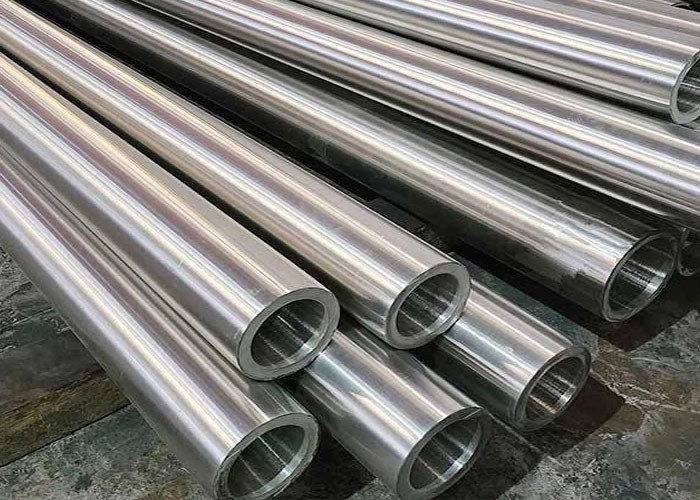

Seamless Inconel Tubes

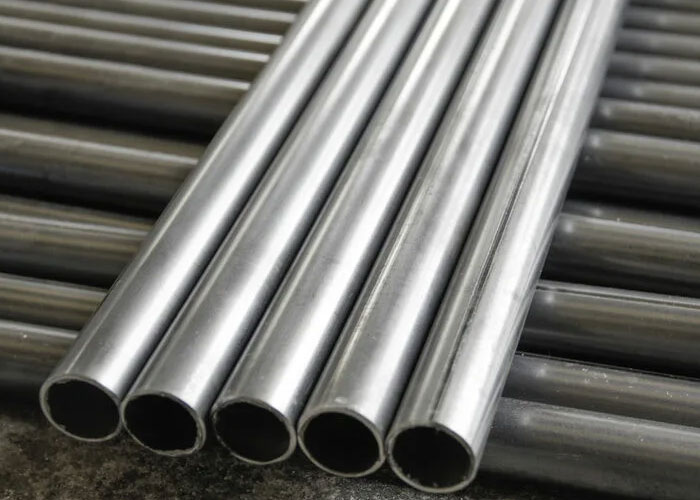

Welded Inconel Tubes

Request a Quote for Inconel Tubes Request a Quote

Inconel Tube Industrial Applications

Inconel tubes serve 5 major industries where high-temperature and corrosion resistance are critical.

Aerospace & Gas Turbine

Inconel 625 tubing is used in jet engine fuel lines, exhaust ducting, and turbine cooling above 650°C.

Chemical Processing

Inconel 625 tubes reliably carry aggressive acids and chloride-bearing process streams in high-pressure, high-temperature chemical reactors.

Oil & Gas

Subsea umbilicals and downhole control lines use Inconel 625 tubing for sour gas (H2S) resistance per NACE MR0175.

Nuclear Power & Heat Exchangers

In the nuclear power sector, Inconel 600 tubes serve as steam generator tubing in pressurised water reactors.

Heat Exchangers & Condensers

ASTM B163 Inconel tubes are specified for heat exchangers and condensers handling seawater and corrosive media.

Inconel Tube vs Stainless Steel Tube

The table given below compares the two most favourable grades of their respective materials.
Inconel tubes outperform SS 316 above 650°C (1200°F) and in chloride stress corrosion cracking environments.

Property	Inconel 625 Tube	SS 316 Tube
Max Service Temperature	980°C (1796°F)	870°C (1598°F)
Tensile Strength (Annealed)	827 MPa (120 ksi)	515 MPa (75 ksi)
Chloride SCC Resistance	Excellent	Susceptible
Cost (per kg)	US $25 to $150	US $3 to $15

SS 316 suits moderate temperatures at a lower cost; Inconel is preferred for severe corrosion and high-temperature service.

Shipping & Packaging

Heavy-duty wooden boxes Packing

Export Packaging Standard

We strictly follow seaworthy export handling standards to protect inconel tube from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

Heavy-duty wooden boxes with moisture barrier lining
HDPE stretch film wrapping on all bundles
Plastic end caps on threaded and plain-end tubes
Silica gel desiccants to minimize moisture exposure
ISPM-15 fumigated wooden packaging for export

Tube Bundle Yard Staging

Container End-Cap Protection

Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies Inconel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

USA
Canada

Frequently Asked Questions

What is an Inconel Tube? +

An Inconel tube is a seamless or welded tubular product made from nickel-chromium superalloys (grades 600 and 625) per ASTM B163 and B444.

What is the price of Inconel Tube per kg? +

Inconel 600 tubes cost Rs 800 to 5,000 per kg in India and US $10 to $60/kg internationally. Inconel 625 ranges from Rs 2,000 to 12,000 per kg in India and US $25 to $150/kg in other countries. Price depends on size, quantity, and market conditions.

What sizes are available for Inconel Tubes? +

Seamless Inconel tubes range from 1/4 inch to 12 inch OD. Wall thicknesses span 0.035 inch (0.89 mm) to 0.500 inch (12.70 mm). Custom sizes are available.

Can Inconel Tubes be bent? +

Inconel tubes can be bent using cold, hot, or mandrel methods. Annealed (Grade 1) tubes offer better formability.

What ASTM standards cover Inconel Tubes? +

ASTM B163 (heat exchanger tubes), ASTM B167 (600/601), and ASTM B444 (625) cover Inconel tubes.

What is the difference between Inconel Tube and Stainless Steel Tube? +

Inconel outperforms SS 316 above 650°C and in chloride SCC environments. SS 316 costs less for moderate temperatures.

How do I select the right Inconel Tube grade? +

Choose Inconel 600 for general high-temperature oxidation, Inconel 625 for severe chloride and acid corrosion.
