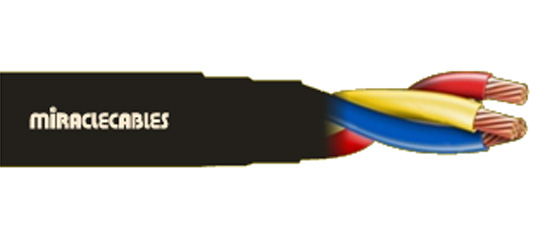

Copper Conductor, PVC Insulated and Sheathed Armoured 1100 V as per IS 1554-1-1988
Our Products
Application
This type of cable is used for transmitting and distributing power. It is typically installed as a permanent fixture in commercial and retail locations, both indoors and outdoors, as well as in industrial plants. It can be buried in the ground, run overhead, or exposed to the sun in cable trays.
Properties
- PVC self-extinguishing and flame retardant:
- Low smoke, low halogen
Construction
- Conductor material : Copper as per IS 8130
- Shape of conductor : For Cu stranded - (Circular compacted)
- Insulation : PVC Type A or PVC Type C as per IS 5831
- Inner sheath : PVC ST1/ST2 (optional)
- Armoured : For single core non magnetic material & for multi core GI wire upto 10mm², Above 16mm² GI Strip
- Jacket : PVC ST1/ST2 Conforming to IS 5831-1984 (Optional : FR & FRLS), UV & ATR
Product Range
