Application
- Especially for frequency converters and servo drives in machine plant construction.
- Continuous flexing applications in “C” tracks.
- Very good resistance against aggressive coolants and lubricants.
- Industrial environments in mechanical and system engineering.
Properties
- High interference resistance (EMC).
- Braid shield optimized for continuous flexible use.
- Good bending strength.
- Low adhesion, abrasion resistance nick resistance, tear propagation resistance.
- Grease, oil, alcohol-free, UV-resistant, silicon-free, ROHS compliant.

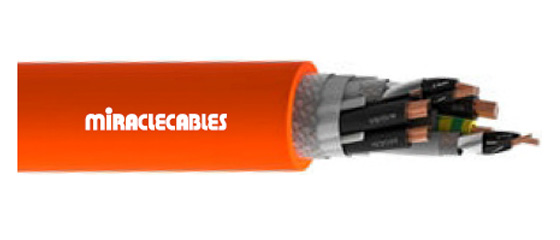

Construction
- Conductor : Bare copper, class-6, IEC – 60228.
- Insulation : Special TPM / PP
- Power conductor black with numbered print, ground green/yellow. (G)
- Pair color black and white with a braided shield and foil tape.
- Cores stranded in layers with optimal lay-length
- Tinned copper braid with coverage > 85%.
- Sheath: PVC - adhesion-free surface, Colour : Orange.
